Precision CNC Machining Mini Feed Auger Screw

Introduction

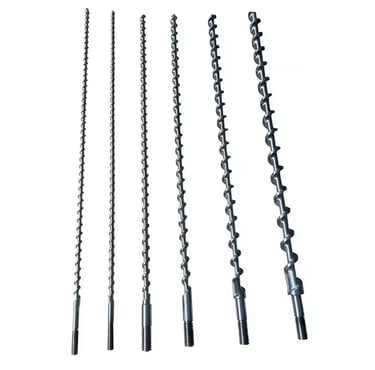

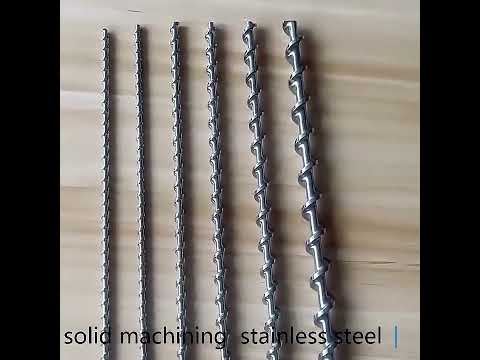

At MachiningFabTech, we specialize in high-precision 6mm diameter, 420mm length feed screws, designed for industries that demand accuracy and durability, and the auger screw is machined from the solid rod.

This article explores the key features, applications, advantages, and machining challenges associated with manufacturing this specialized component.

Product Specifications

Our feed auger screw is engineered for high efficiency and reliability. Here are its key specifications:

• Material: Stainless Steel 304 (SS304)

• Shaft Diameter: 6mm

• Helix Outer Diameter: 8mm

• Total Length: 420mm

• Thread Type: Combination of Right-Hand and Left-Hand Thread Sections

Key Features & Benefits

1. High-Precision Threading for Smooth Material Flow

The 6mm shaft diameter and 8mm helix outer diameter ensure efficient feeding with minimal resistance. The combination of right-hand and left-hand threads allows for controlled material movement, reducing inconsistencies in processing.

2. SS304 Stainless Steel for Corrosion Resistance

Made from SS304 stainless steel, this auger screw offers excellent corrosion and oxidation resistance, making it suitable for harsh environments in food processing, pharmaceuticals, and chemical industries.

3. Optimized Machining for Superior Surface Finish

Precision CNC machining ensures tight tolerances, reduced surface roughness, and wear resistance, extending the screw’s service life and maintaining accuracy over long-term operation.

4. Advanced Manufacturing Techniques for Minimal Deflection

Given the high length-to-diameter ratio (70:1), we use advanced workholding methods to minimize bending and vibration, ensuring concentricity and dimensional stability throughout production.

Applications of the SS304 Feed Screw

Our high-precision feed screw is widely used across multiple industries, including:

✅ Food & Beverage Processing – Ensures smooth, contamination-free transport of dry and liquid ingredients.
✅ Medical & Pharmaceutical Equipment – Facilitates precision-controlled material handling.
✅ Plastic Extrusion & Injection Molding – Supports accurate feeding of polymer materials.
✅ Chemical & Powder Processing – Handles bulk powder and granules in industrial manufacturing.
✅ Automotive & Aerospace – Assists in metered fluid and material transport for high-precision assemblies.

Challenges in Machining a 6mm Diameter, 420mm Length Feed Screw

Despite its compact size, producing a 6mm diameter, 420mm length feed screw presents significant machining challenges that require expert engineering solutions:

1. Deformation Due to High Length-to-Diameter Ratio

• A 70:1 ratio increases the risk of bending and vibration during turning and milling.

• Steady rests and tailstock support are required to maintain straightness.

2. Thread Machining Difficulties

• Fine-pitch threads require precise depth and pitch control to prevent tool deflection.

• Left-hand and right-hand thread transitions demand high accuracy to avoid misalignment.

3. Work Hardening & Tool Wear in SS304 Stainless Steel

• High work hardening rate increases cutting resistance, leading to premature tool wear.

• Requires sharp carbide tools and optimized feed rates to prevent built-up edges (BUE).

4. Surface Finish & Tolerance Control

• Maintaining cylindricity and straightness is challenging on long, thin workpieces.

• Requires grinding or polishing to achieve low surface roughness (Ra value).

5. Workholding & Alignment Challenges

• Clamping a long, thin shaft without deformation requires between-center support.

• Excessive chuck pressure may introduce slight bending, affecting precision.

6. Chip Evacuation & Coolant Application

• Fine chips tend to accumulate in threads, increasing tool wear and potential damage.

• High-pressure coolant and optimized chip evacuation strategies are necessary.

Why Choose MachiningFabTech for Feed Screws?

At MachiningFabTech, we leverage advanced CNC machining capabilities to solve complex production challenges and deliver high-precision feed screws that exceed industry standards.

Our expertise ensures:
✔ Tight Tolerance Manufacturing – Precision control for seamless assembly.
✔ Customizable Designs – Tailored specifications to match exact application requirements.
✔ Superior Surface Quality – Minimizing friction, wear, and maintenance requirements.

Conclusion

The SS304 feed screw (6mm shaft, 8mm helix, 420mm length) is an essential component in many industries, offering high precision, durability, and optimized thread design. With the right machining techniques, quality and performance can be maximized to meet the most demanding applications.

🔹 Looking for a custom feed screw solution? Contact MachiningFabTech today for high-quality, precision-machined components!

📩 Request a Quote Now!
