MIM Powder Metallurgy Butterfly Screw M4: Features, Manufacturing, and Applications

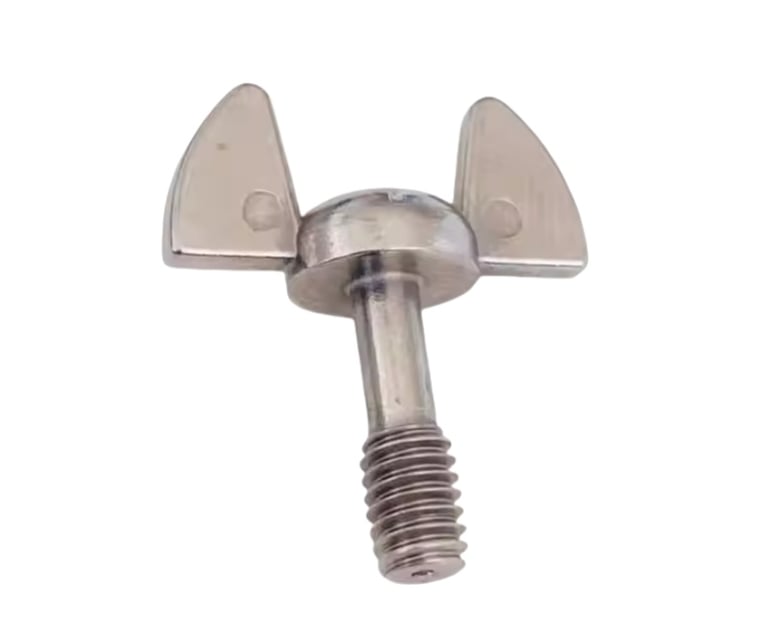

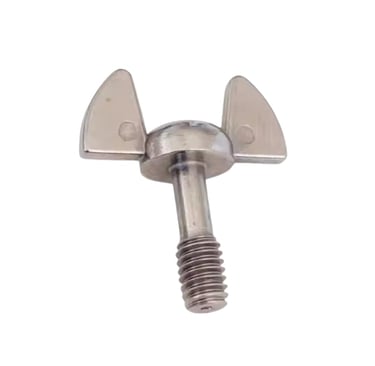

What is an MIM Powder Metallurgy Butterfly Screw M4?

A butterfly screw is a type of fastener with large, wing-like projections that allow for hand tightening without tools. The M4 specification refers to a 4mm diameter metric screw, commonly used in applications requiring frequent adjustments or quick assembly.

When manufactured using Metal Injection Molding (MIM) Powder Metallurgy, the butterfly screw benefits from high precision, complex geometry capabilities, and cost-effective production.

The Brief process of MIM Powder Metallurgy

MIM is a manufacturing process that combines the design flexibility of plastic injection molding with the use of metal. The process involves:

1. Mixing fine metal powder with a polymer binder to form a moldable feedstock.

2. Injecting the material into a mold to create the butterfly screw shape.

3. Debinding and sintering at high temperatures to remove the binder and densify the metal.

Advantages of MIM Powder Metallurgy in Butterfly Screws

MIM technology offers several key benefits that make it an ideal manufacturing process for butterfly screws:

• Design Flexibility: MIM enables the production of complex and detailed shapes that would be difficult or impossible to achieve through traditional machining or casting. This allows for optimized functionality and aesthetic appeal.

• Cost-Effective for Mass Production: The process is highly efficient, reducing material waste and eliminating the need for extensive secondary machining, making it more economical for large-scale production.

• High Dimensional Accuracy: MIM parts exhibit tight tolerances and consistent dimensions, ensuring a precise fit and reliable performance.

• Material Versatility: A wide range of metal powders can be used, including stainless steel, alloy steel, and other specialized materials, allowing for customized properties such as corrosion resistance or wear resistance.

• Uniform Quality: The injection molding process ensures repeatability and consistency, minimizing defects and improving overall product reliability.

• Smooth Surface Finish: MIM parts generally have a fine surface finish, reducing the need for additional polishing or finishing treatments.

Why Choose MIM for Butterfly Screws?

• Intricate Design: Produces complex shapes that traditional machining struggles with.

• Cost-Effective for Mass Production: Reduces material waste and machining time.

• Smooth Surface Finish: Minimizes the need for post-processing.

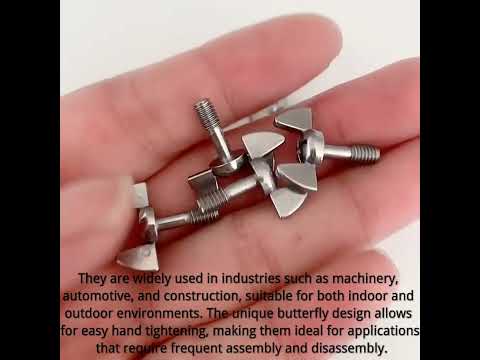

Common Applications of MIM Butterfly Screws

Due to their tool-free installation and removal, M4 butterfly screws made using MIM technology are widely used in:

• Electronics & Appliances: Securing panels and enclosures in devices requiring maintenance access.

• Automotive: Fastening interior components where frequent adjustments are necessary.

• Medical Devices: Providing secure but removable connections in medical instruments.

• Industrial Machinery: Quick-locking mechanisms for safety guards and maintenance access points.

Choosing the Right MIM Butterfly Screw M4

When selecting an MIM butterfly screw, consider:

• Material: Stainless steel for corrosion resistance, or alloy steel for specific mechanical properties.

• Thread Specifications: Ensure compatibility with the receiving component.

• Surface Treatment: Options like plating or coating can improve durability and wear resistance.

Conclusion

MIM powder metallurgy butterfly screws offer a perfect balance of precision, complex design capability, and cost-efficiency, making them ideal for various industries. Whether for industrial equipment, electronics, or medical applications, MIM technology provides an efficient manufacturing solution for detailed and functional fastening components.

Looking for reliable MIM butterfly screws? Contact us today to discuss your requirements and get a customized solution!
