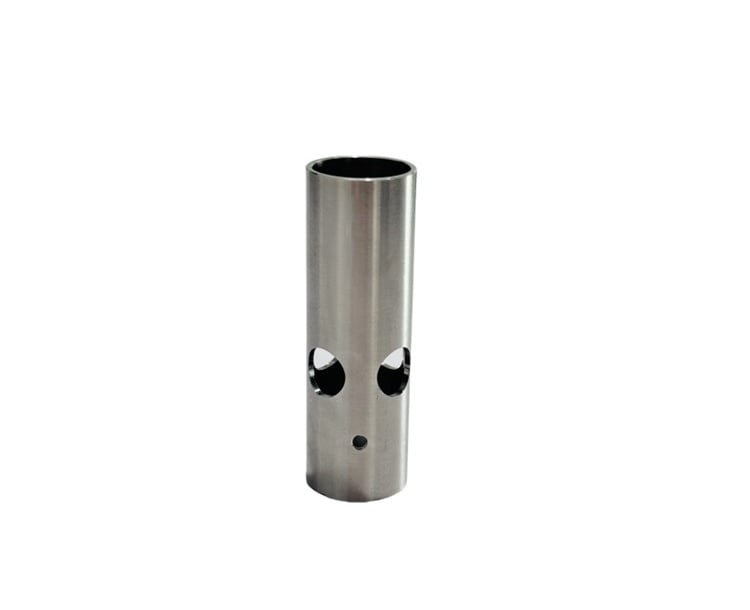

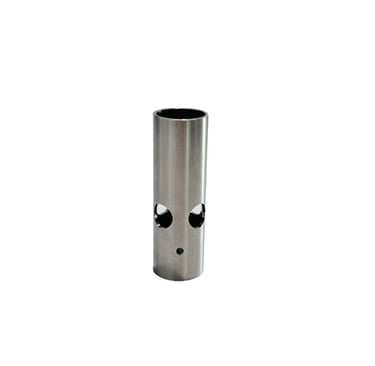

Custom Precision Stainless Steel Turning Parts Polishing Threaded Holes

Made of high-quality stainless steel, after multiple machining processes such as turning, it can be used in various scenarios. Polishing not only increases industrial performance but also improves aesthetics.

Material: SS304

Basic Size:OD25mm, ID22mm, L:78mm,

Net Weight: 0.063 KGS

Cylindricity： 0.05mm

Tolerance of ID 22: +/- 0.02mm

Roughness: Ra1.6

What is the best process to achieve the tolerance +/-0.02 for the inner diameter of 22mm?

For ±0.02mm tolerance on a 22mm inner diameter, a combination of CNC machining (for roughing) followed by honing (for finishing) is typically the best approach. Proper tooling, quality control, and environmental factors are also crucial to achieving this level of precision.

1. Primary Process: CNC Machining

1.1. CNC Turning or Milling: Use high-precision CNC machines to achieve a rough-to-finish cut. Advanced CNC lathes with modern tooling are capable of holding tight tolerances consistently.

1.2.Tooling: Ensure high-quality carbide or diamond-coated tools to maintain dimensional accuracy and reduce tool wear.

2. Secondary Process: Precision Grinding or Honing

If the CNC machining process does not achieve the desired tolerance:

2.1. Grinding: Internal cylindrical grinding is ideal for achieving precise tolerances and surface finishes.

2.2. Honing: A honing process is highly recommended for inner diameters, as it provides excellent control over tight tolerances, roundness, and surface smoothness.

3. Inspection and Quality Control

Use high-accuracy bore gauges, air gauges, or CMM (Coordinate Measuring Machine) for precise measurements.

Perform in-process inspection to ensure parts meet tolerance before moving to subsequent operations.

Contact us today to solve your problems!

Key Features

1. Materials: aluminum alloy, Stainless steel, titanium alloy, and other materials.

2. Treatment surface: Polishing not only increases the aesthetics, but also makes it more industrially functional.

3. Customization: 100% customized.

4. Compliance: Meets industry standards for safety and performance.

Advantages

1. Durability: Long-lasting performance even in harsh environments.

2. Quality Assurance: Rigorous quality control processes to ensure defect-free products.

3. Competitive Pricing: Cost-effective solutions without compromising on quality.

4. One-Stop Service: Comprehensive services from design to delivery.

5. Global Export: Efficient logistics to Europe, America, Oceania, and other regions.

Applications (but not limited to the following)

1. Electronics: Housing sensitive electronic components and systems.

2. Telecommunications: Protecting networking equipment and cables.

3. Automotive: Parts for various automotive electronic systems.

4. Industrial: General-purpose parts for industrial machinery and equipment.

Why Choose Us?

1. Expertise: Over a decade of experience in OEM machining.

2. Quality Control: Strict adherence to quality standards with continuous improvement according to ISO 9001.

3. Customer Support: Dedicated assistance throughout the purchasing process, the response time is within 8 hours.

4. Timely Delivery: Efficient production and logistics ensure on-time delivery.

5. Flexible Solutions: Tailored solutions to meet specific customer requirements.
