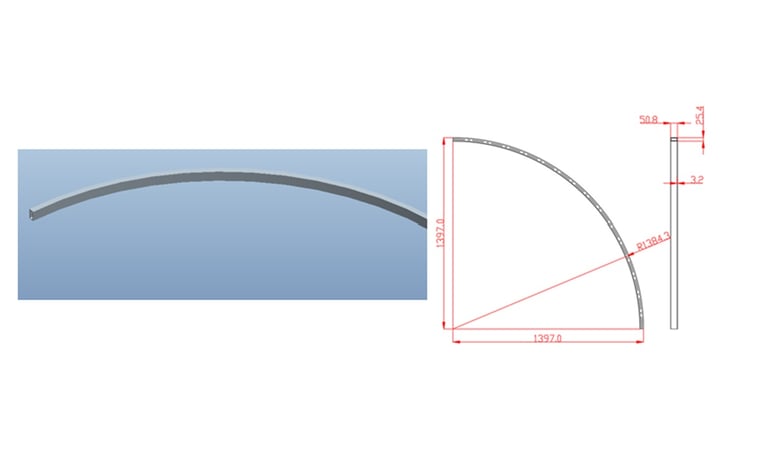

Best Tube Bending Method for Large Radius (R1000–R1500): Why Roll Bending is the Ideal Choice

When working with large-radius tube bending (typically R1000 mm to R1500 mm), selecting the right bending process is essential to ensure precision, quality, and cost-effectiveness. In this article, we explain why roll bending (three-roll bending) is the most suitable method for this application and why alternative methods fall short.

✅ Recommended Process: Roll Bending (Three-Roll Bending)

Roll bending is a gradual bending method that uses three rollers to form smooth, large-radius curves in tubing. It is particularly effective when the tube requires only one bend and the radius is wide.

How It Works:

• The tube is passed between three rollers arranged in a pyramid or pinch configuration.

• The center roller applies downward pressure while the outer rollers feed the tube.

• Through multiple passes and incremental adjustments, the desired radius is achieved.

🎯 Advantages of Roll Bending for R1000–R1500 Bends

⚠️ Bending Methods Not Recommended for Large Radii

❌ Rotary Draw Bending

• Typically used for tight radii and high precision.

• Not economical or practical for large-radius bends due to tooling and force limitations.

❌ Compression or Press Bending

• May result in wrinkling, wall thinning, or distortion.

• Lacks the flexibility and control needed for smooth, wide curves.

🔧 Key Considerations for Roll Bending

1. Material Springback

• Materials like stainless steel or high-tensile alloys tend to return partially to their original shape after bending.

• Compensation in setup is required to achieve accurate final dimensions.

2. Precision Requirements

• If tight tolerance is needed, CNC-controlled roll bending machines are highly recommended.

• They offer consistent pressure control and real-time radius adjustment.

🏭 Applications of Large-Radius Roll Bending

• Architectural structures

• Automotive frames and roll cages

• Pipeline and HVAC systems

• Aerospace structural tubing

• Heavy machinery components

🔍 Why Choose MachiningFabTech for Roll Bending Projects?

At MachiningFabTech, we specialize in custom tube bending services including precision roll bending for both OEM and ODM projects. Whether you’re in automotive, construction, or heavy industry, our team ensures:

• Consistent quality control

• Competitive lead times and pricing

• Expert support on material selection and deformation control

• One-stop service from fabrication to surface treatment
